Plastic card punching machine

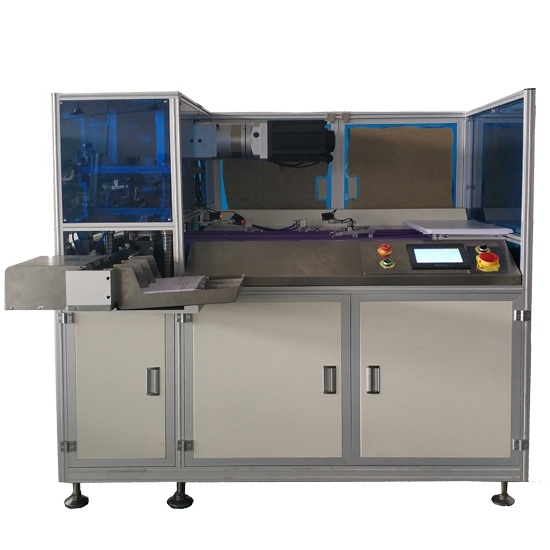

RK-PM3D Semi-auto plastic card punching machine
Function：
The RK-PM3D is designed for high speed punching and stacking of plastic cards from sheet printed material. Available for any commercial sheet format. Perfect mechanical performance and shear-type male & female die ensures high volume production, accurate die cutting, and high quality card edges.
。
Feature
1.Used High sensitive photoelectric sensor with imported ball-screw feed the material, and the positional parameter of each punching point is adjustable. High accuracy.
2.Used hydrocylinder as punching power, low noise, stable. The speed and the pressure is adjustable, it’s better when punch different thickness card.
3.Used advanced cards collecting system, collect the cards quickly after punching.
4.Controlled by PLC, has emergency stop.
Specification:
| Power supply | AC 380V/50 HZ | Suitable products | PVC,ABS,PET,PETG,paper card |
| Power | 3.5KW | Format | 3*8,4*8,5*5 |
| Air pressure | 6 kg/ cm² | Production | 8000~14000 pcs /h |
| Air supply | About80L/min | Control | PLC+ servo system |
| Weight | 850Kg | Operator | PLC+ servo system |
| Accuracy | ±0.10mm | Size | L1800*W830*H1520mm |
