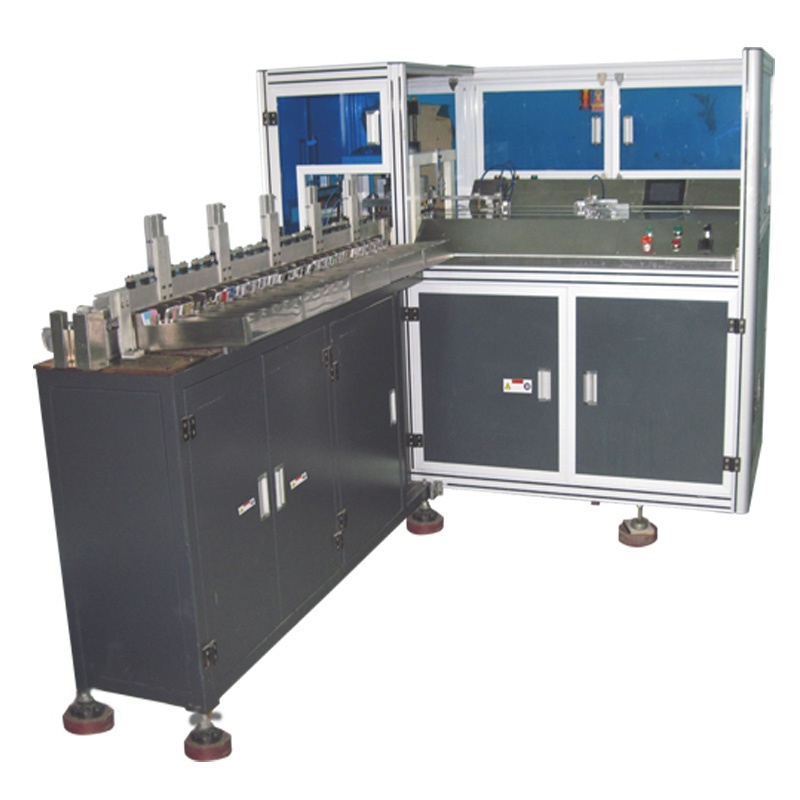

PVC card punching and stacking machine
Function:
Our RK-PS24 used touch screen, oil cylinder as punching power, High sensitive sensor cooperate with two stepping system realize longitudinal positioning, through servo motor drive and imported ball-screw finish lateral positioning and feeding, the punching accuracy is less than ±0.10mm.
This model is specialized in punching and separating different pattern card. independent box (3-32pcs) for card separating and collecting.
1.High sensitive positioning sensor cooperate with imported high precise ball-screw feed the card, the parameter of each punching point is adjustable, high accuracy.
2.Used oil cylinder as punching power, low noise, high speed, stable power, punching speed is adjustable, effect better when punching different thickness material.
3.Advanced card collecting system, realized card separating and collecting. specialized in punching and separating different pattern card.
4. PLC program control automatically, Abnormal automatic shutdown and alarm.
Specification:
| Power supply | AC 380V/50 HZ | Material | PVC,ABS,PET,PETG, Paper card |
| Power | 3.5KW | Format | 3*8,4*8,5*5 |
| Air pressure | 6 kg/cm | Output | 14000 pcs /h |
| Air supply | About 85L/min | Control | PLC + servo system |
| Weight | 1000Kg | Operator | 1 person |
| Accuracy | ±0.10mm | Size | L3420*W850*H1520mm |
