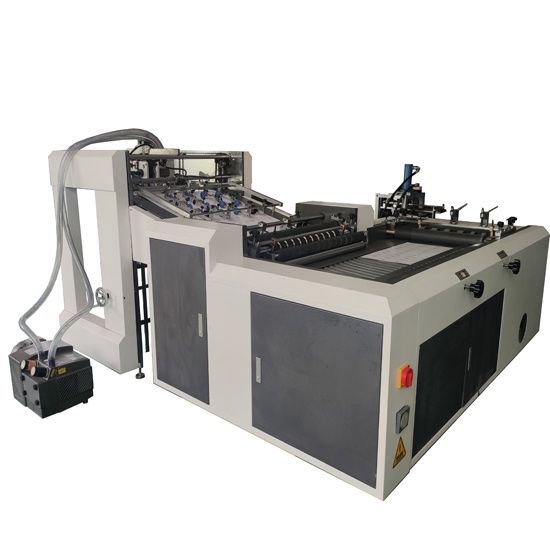

Playing card cutting and collating machine

Specification:

1. Machine is automatic sheet feeding, cutting and collating.

2. Machine is high efficiency and the precision of the cutting is also high.For different specification of the card.

3. Slitting knives are easy to adjust and change,suitable for different layout.

4. Machine structure compact, easy to maintenance, place saving.

5. Card collating system is stable and fast,and the cards won't lose and change order during cutting

6. Machine equipped with corner cutting system,cut the corner automatically after deck collating.

7. Machine controlled by PLC + Touch screen, safety and reliability, automatically,easy to operate.

Technical parameters:

Suitable paper thickness: 150-500gsm

Max. paper size:1040×720 mm

Min. Paper size:450×550 mm

Max. card size:90×120 mm

Min. card size:50×65 mm

Speed:4000decks/hour

Power Supply: 380v 3phase

Total power: 8.5kw

Dimension: 3600*4100*1800mm(L*W*H)

Weight:3000kg
