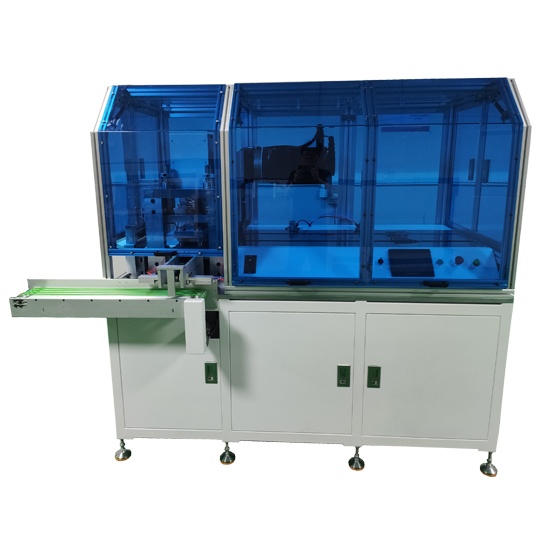

Poker cards die cutting machine

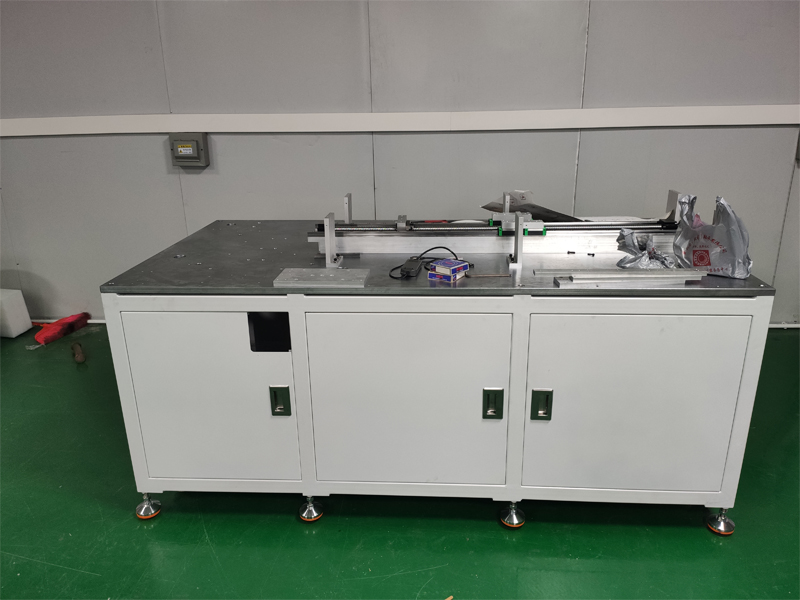

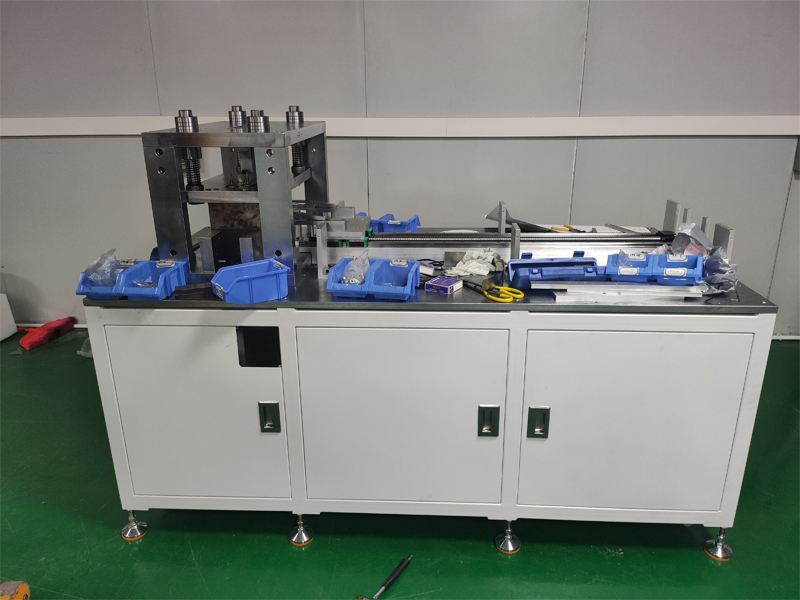

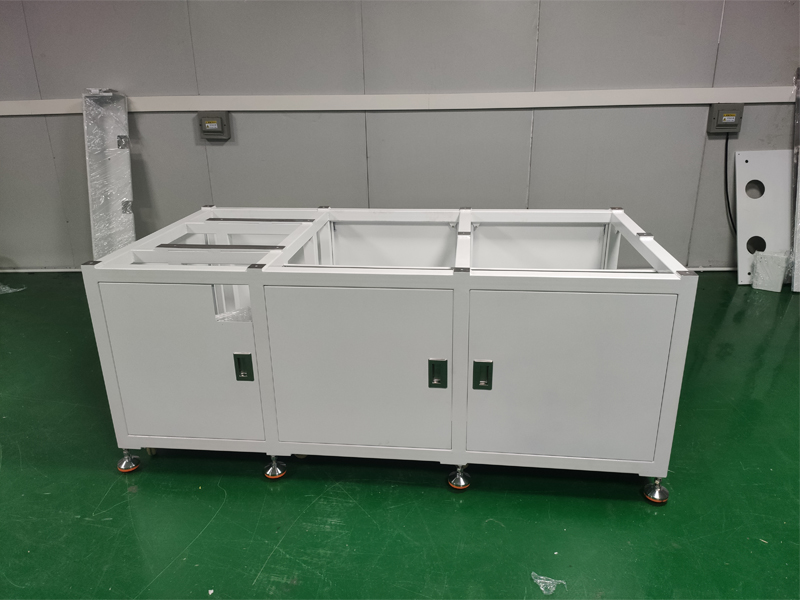

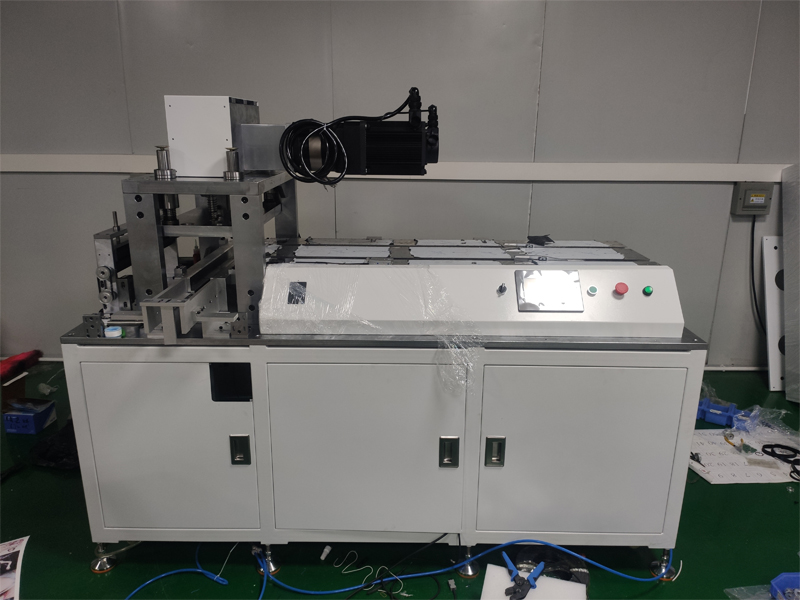

Machine assembling

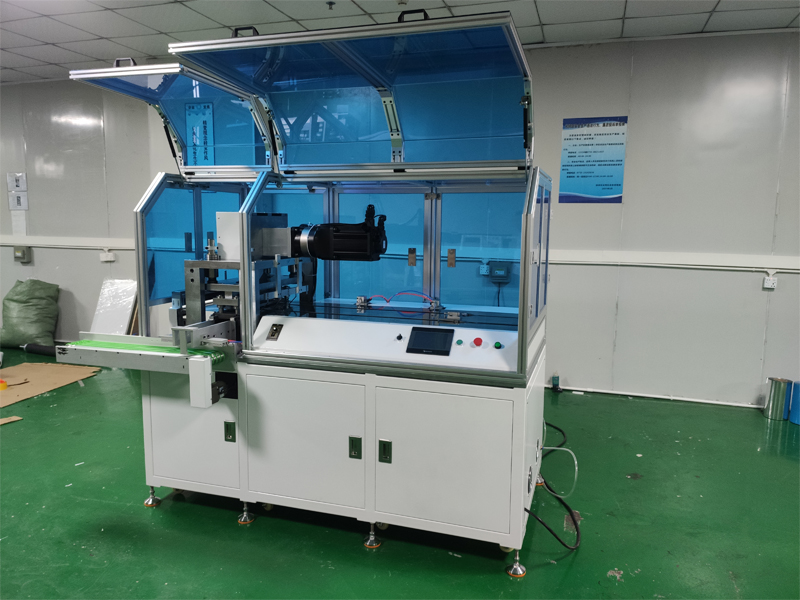

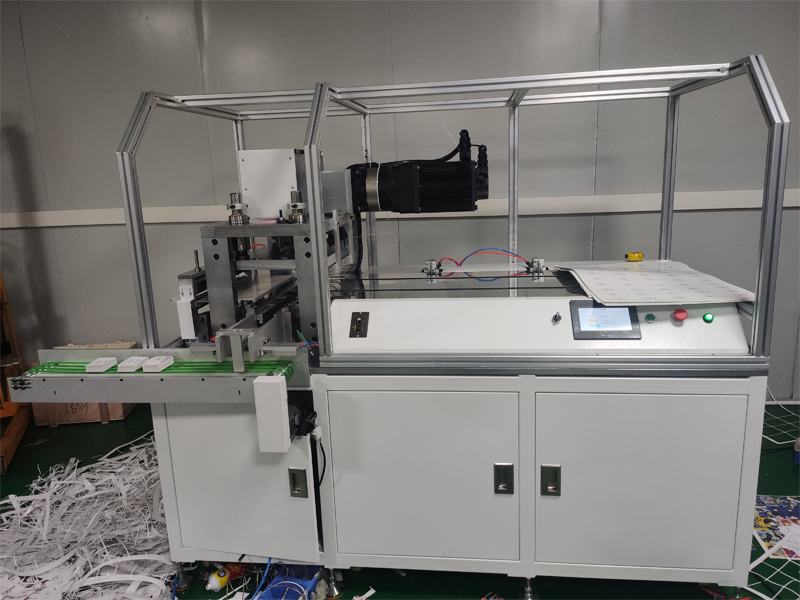

RK-PPS5 Poker cards punching machine
Function
The RK-PPS5 is designed for high speed punching and stacking of paper playing cards from sheet printed material. Available for any commercial sheet format. Perfect mechanical performance and shear-type male & female die ensures high volume production, accurate die cutting, and high quality card edges.
Feature
1.Used imported ball-screw feed the material, and the positional parameter of each punching point is adjustable. High accuracy.
2. Used Servo motor as punching power,very stable.
3. Used advanced cards collecting system, collect the cards quickly after punching.
4. Controlled by PLC, has emergency stop.
Specification:
|
Power supply |
AC 380V/50 HZ |
Suitable products |
Poker cards |
|
Power |
7KW |
Format |
5*11 |
|
Air pressure |
6 kg/ cm |
production |
9-10 pcs per minute |
|
Air supply |
about80L/min |
Control |
PLC+ servo system |
|
Weight |
1420Kg |
Operator |
1 person |
|
Accuracy |
0.20mm |
Size |
L1800*W1000*H1700mm |
